Caldeira aquecimento central Carinci Smart Quality

On request
Tax included

CARINCI boilers from the SMART QUALITY series are compact, high-efficiency and power-modulated boilers, suitable for technical environments and small rooms. The boiler is managed by a standard electronic control unit that allows programmed ignition via a steel glow plug.

SMART QUALITY boilers They can be combined with any type of heating system, both with traditional radiators and for underfloor heating, therefore, they can be connected directly to the heating system, in addition, they can be combined with an external kit for the production of hot water sanitary (OPTIONAL)

For this product, you can have the help of a certified technician from the company CLÁUDIO MARQUES, so that the first ignition can be carried out. (call: 238692209)

Model
Quantity
Out-of-Stock



Security policy



Delivery policy



Return policy (edit with Customer reassurance module)

rightbanner

rightbanner1

SMART QUALITY BOILER STANDARD SAFETY SYSTEMS

BOILER BODY SAFETY

- boiler thermostat

- Manual reset thermostat

- Heat sink

- Safety valve

BURNER SAFETY

- misfire safety

- Safety water pressure switch

- Smoke safety pressure switch

DOOR OPENING SAFETY

- Bayonet switch

SMART QUALITY – Pellets

Smart Quality 200

Smart Quality 250

Thermal energy - KW -

19.7

22.51

Reduced thermal power - KW -

5.85

6.35

Maximum operating pressure - bar -

3

3

Test pressure - bar -

4.5

4.5

Boiler water volume - lt -

40

78

Boiler weight - Kg -

267

382

Maximum water temperature - ° C -

90

90

Minimum water temperature - ° C -

60

60

Efficiency -% -

> 90

> 92

Pellet tank capacity - Kg -

50

55

CATALOG

USER MANUAL  200

USER MANUAL 250

Smart Quality 200

The Smart Quality 200 boiler body has a structure with 15 vertical smoke passages (mandatory path) with turbulators, of which 9 are blades and 6 are helical.

DOUBLE DOOR

- The combustion chamber door is closed twice and equipped with a heat-insulating refractory plate.

- The outer door is made of painted steel and has a double insulated wall.

The boiler is equipped with a guillotine door for inspection and emptying of the pellet tank.

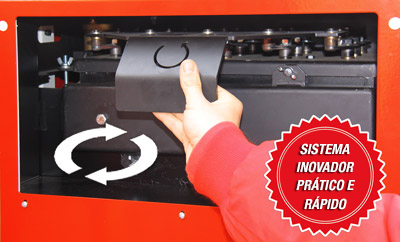

"QUICK CLEANING" SYSTEM

The Intelligent Quality 200 boiler is equipped with an innovative manual cleaning system, which allows the user to clean heat exchangers in a practical and fast way, turning the guide plate of the stainless steel helical turbulence generators in the upper part of the boiler, causing the ash to fall directly into the special (comfortably removable) drawers located at the base of the combustion chamber.

Smart Quality 250

The boiler body of the Smart Quality 250 has a structure with a large primary duct passage and 5 secondary duct passages with horizontally changeable stainless steel vane turbulators (trajectory required).

DOUBLE DOOR

The combustion chamber door is closed twice and equipped with a heat-insulating refractory plate.

The external door is made of painted steel and features a double insulated wall.

AUTOMATIC REVERSE ENGINE SAFETY

The CARINCI SMART QUALITY 250 boiler gear motor is equipped with a reverse gear feed auger control, which senses increased resistance in fuel transport and automatically reverses the direction of travel for about one turn, thus removing blocked fuel to resume normal operation and prevent boiler blockage and any breakdowns in the fuel supply system.

The boiler is equipped with a guillotine door for inspection and emptying of the pellet tank.
